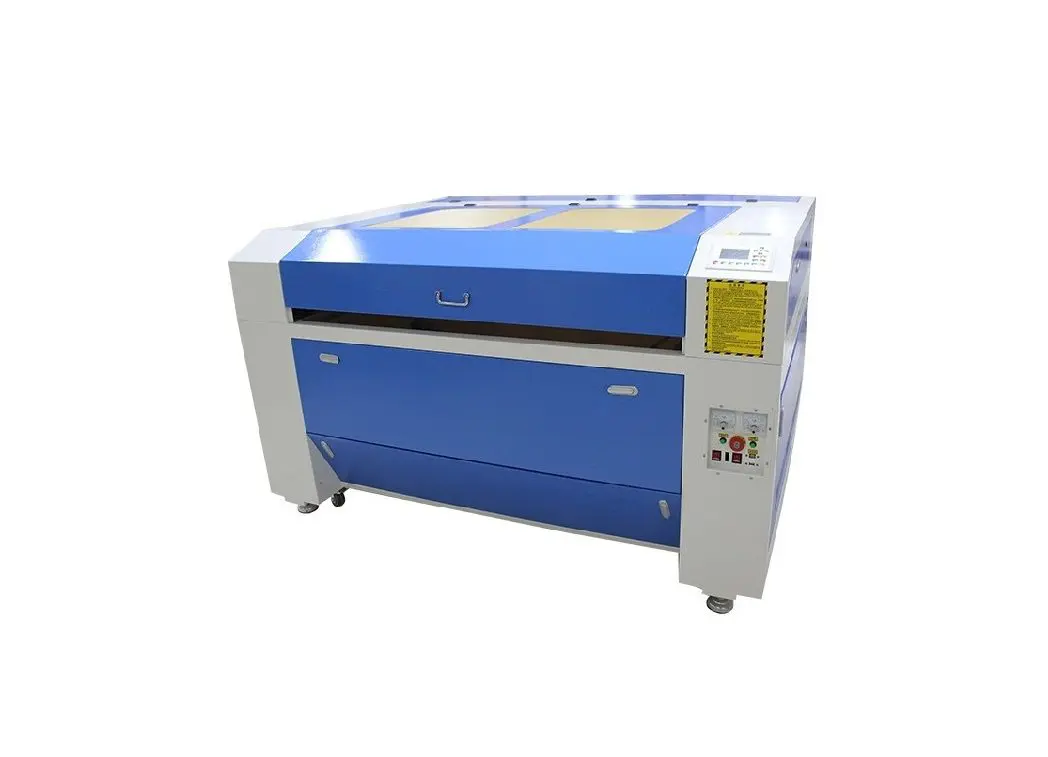

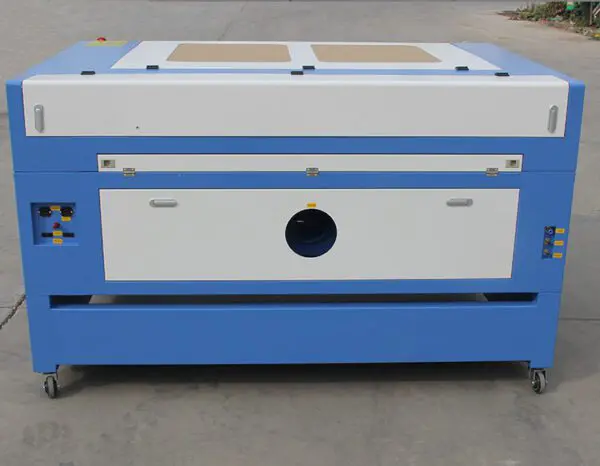

IE1390 Laser Engraver

(9 customer reviews)

Price range: $2,450.00 through $2,850.00

Take on larger jobs with confidence using the IEHK IE1390 Laser Engraver. Featuring a 4′ × 3′ cutting area, pass-through doors, autofocus, and optional rotary capability, it delivers fast, accurate engraving and cutting for growing businesses and production shops.

Product ID: 514 SKU: N/A Category: Tag:

Description

LASER ENGRAVING CUTTING MACHINE:

The IE1390 Laser Engraving Cutting Machine is the professional’s choice!

  • Multi laser head machine can be made to order.
  • High performance. Extreme precision. Solid reliability. Safe and easy to use. Very affordable..
  • Easy operation via PC and software – Can output from Coreldraw directly.
  • Can add rotary device, auto focus, CCD camera function.
  • No pre- or post-processing – The cutting edge has a very good surface finish and the top side is free of scratches.
  • Minimal influence on the material – no-contact processing allows no force effects. The zone influenced through heat is minimal and the material structure remains.
  • No tooling costs are incurred, as there is no wear and tear on the laser point.
  • Waste and noise levels are much lower than most conventional machines.

PROCESS ADVANTAGE:

  • Easy operation via PC and software – AI, BMP, PLT, DXF and DST  formats can be processed.
  • Minimal set-up time – There is no need to clamp the piece you are working on. Time-consuming positioning is a thing of the past!
  • No pre- or post-processing – The cutting edge has a very good surface finish and the top side is free of scratches.
  • Minimal influence on the material no-contact processing allows no force effects. The zone influenced through heat is minimal and the material structure remains.

Technical Specs

SPECIFICATIONS:

  • Cutting area: 4´x 3´ (1300x900mm), pass through doors open for larger pieces to be put into machine
  • Motorized up and down platform included, you can raise and lower up to 11.8“(300mm)
  • Power Laser: 60-130W CO2 laser tube, multi laser head can be made to order
  • Standard Features: Autofocus sensor, visible red laser pointers, integrated vector grid and vacuum table, water cooling protection system.
  • Resolution: User controlled from 75 to 1200 dpi.
  • Speed ​​and Power: Computer or manually controls speed and power in increments from 1% to
    100%. Vector color mapping links speed, energy and focus to any RGB color.
  • Operating modes: optimized raster, vector or combined modes.
  • Air Assist: Connect an air compressor to our included Air Assist to remove heat and combustible gases from the cutting surface by directing a constant stream of compressed air through the cutting surface.
  • Resetting positioning accuracy: ± 0.1mm
  • Supported File Format: DST, PLT, BMP, DXF, AI
  • Red Dot Pointer: Since the laser beam is invisible, the red dot pointer allows you to have a visual reference to locate where the laser will fire.
  • Support Graphic Formats: Files which Corel Draw, Photoshop, AutoCAD can identify, Support Corel Draw output directly(X4/5)

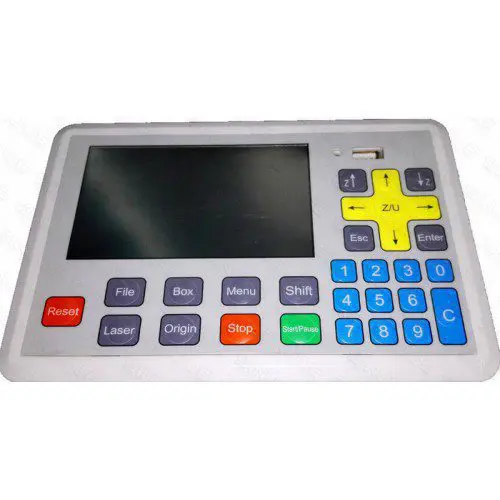

  • Control system, software: RUIDA 6445, Rdwords
  • Power supply: 110/240 volts, 50 or 60 Hz, single phase, 15 amp AC
  • Power Gross: 1000W
  • Temperature Operating: 5-45 °C
  • Operating Humidity: 5-95%
  • Depth Engraving: 3mm; Cutting Depth: 15 ~ 20mm (0.6 “-0.8” inches) acrylic
    NOTE: Cutting capacity is for reference only and depends on the different material supply and customer cut quality requirement.
  • Ventilation system External exhaust is required. There is 1 exit port, 4 “in diameter.
  • Net weight: 280lbs (127kg)
  • Dimension of Machine: 74″x51″x44″(1880x1300x1120mm)
  • Dimension of Package: 81″x58″x50 “(2060x1490x1280mm)
  • Packing: Polywood Case
  • Free technical support
  • One Year Limited warranty

Accessories

Included Accessories:

  • 1 water chiller for cool the laser tube
  • 1 air compressor for laser head
  • 1 extraction fan
  • 1 Honeycomb Vacuum Table
  • 1 Rdworks software (English version)
  • 1 User Manual (English version)
  • 1 communication cable
  • 1 pcs laser tube
  • 3 reflect optics
  • 1 focus Optics

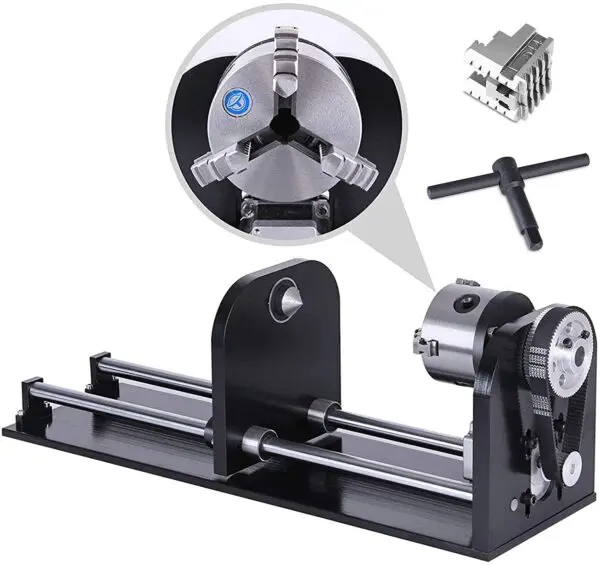

  • 1 Rotary device (optional)

Applications / Videos

APPLICATIONS:

Cutting and engraving: rubber, plastic, organic glass, cloth, leather, wool fabric, ceramics, tile, crystal, acrylic, jade, bamboo, wood, and other nonmetal materials.  (This machine can mark on metal and all material when used with a special spray  www.thermark.com)
