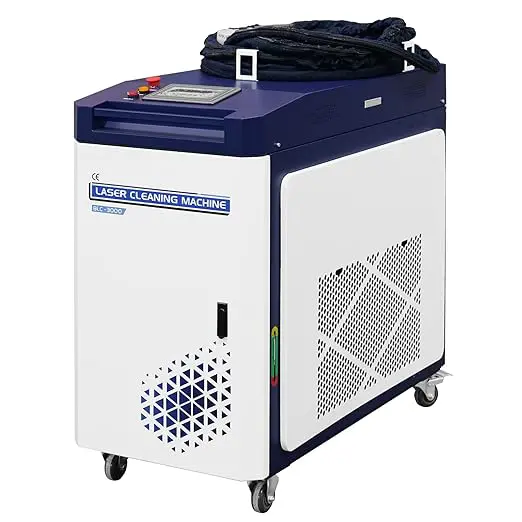

Laser Welding/Cleaning Machine

Price range: $4,200.00 through $6,000.00

Delivery within the U.S. and Canada takes 7-10 business days;  EU countries: 10-15 business days. Import Tax or VAT is included.

Product ID: 9718 SKU: N/A Category: Tag:

Description

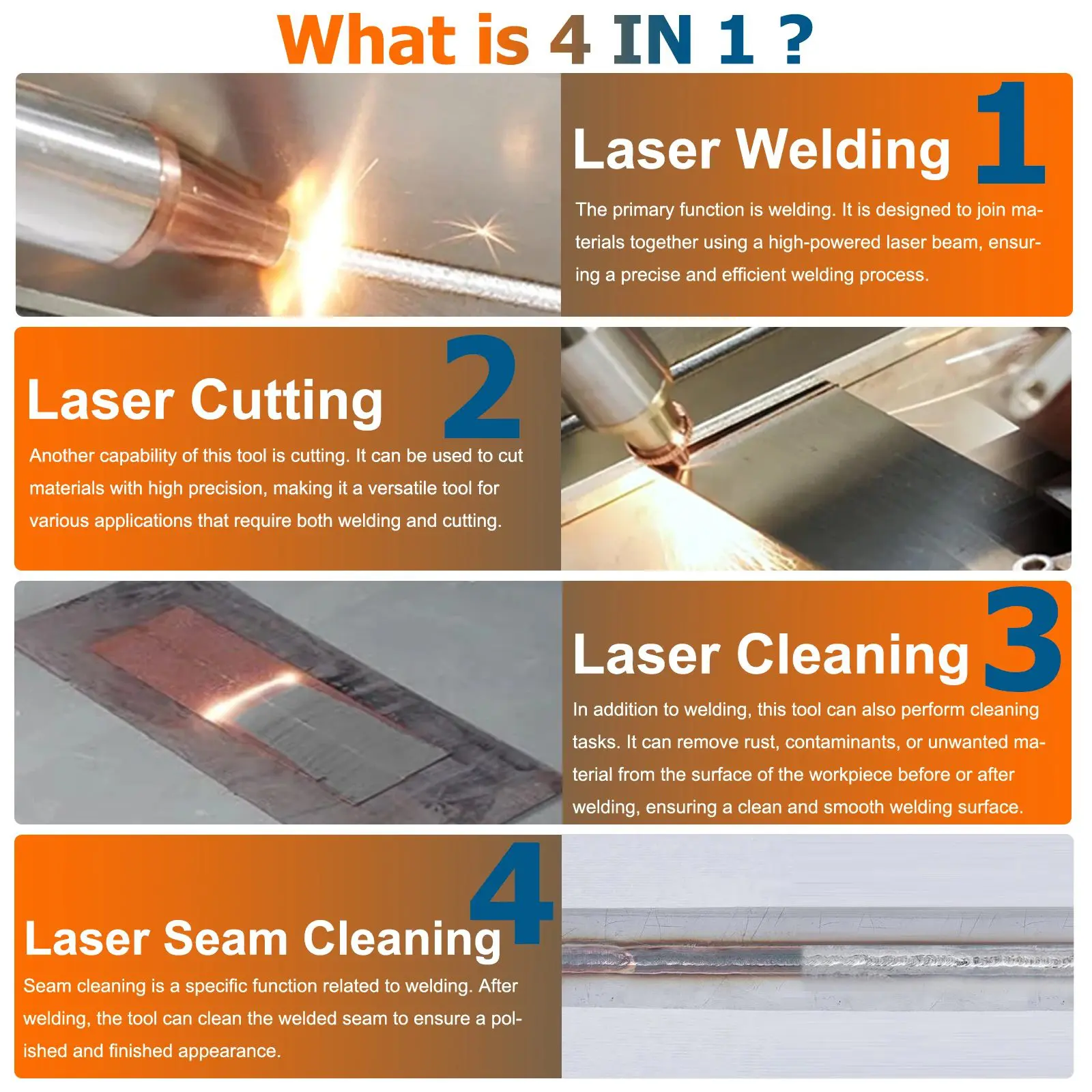

IEHK Handheld 1500/3000W Laser Welding Cleaning 4 in 1 Machine

This Cleaning/Rust Removal machine offers high-energy performance for efficient and precise cleaning, all while maintaining the integrity of the treated substrate. Say goodbye to damage or deformities on the surfaces, as our non-contact cleaning process guarantees safe and effective results without compromising the material’s quality.

Whether it’s titanium alloys, aluminum alloys, high-temperature alloys, stainless steel, carbon steel, or semiconductor materials – this high power laser cleaning equipment handles them all. Its compatibility with various metal substrates and non-metal materials ensures maximum flexibility for your cleaning projects. This 1500/3000W laser welding/cleaning machine is the perfect addition to modern manufacturing and fabrication shops. It offers a maintenance-free and cost-effective operation without the need for hazardous consumables, making it an environmentally friendly and budget-conscious choice.

Technical Specs

SPECIFICATIONS:

Laser Source:

Brand:        BWT

Nominal Power:        1500/3000W

Mode of Operation        CW/Modulated

Polarization        Random

Power Tunability    %    10 to 100

Wavelength    nm    1080 ± 5

Output Power Instability    %    ±1.5

Laser Beam Quality        M2 <1.5

Modulation Frequency    kHz    20

Preview Red Light Power    mW    0.1~1

Interface        QBH (LOC)

Output Fiber Length    m    20 (customizable)

Output Fiber Core Diameter    μm    50 (customizable)

Control Mode        RS-232/AD/Super Terminal

Bending Working Radius    mm    < 300

Input power    VAC    220-240, Single Phase

Operating Temperature    °C    10 to +40

Storage Temperature    °C    -10 to +60

Humidity    %    <70

Cooling Method        Water Cooling

Dimension    mm    410*586*150

Weight    kg    <40

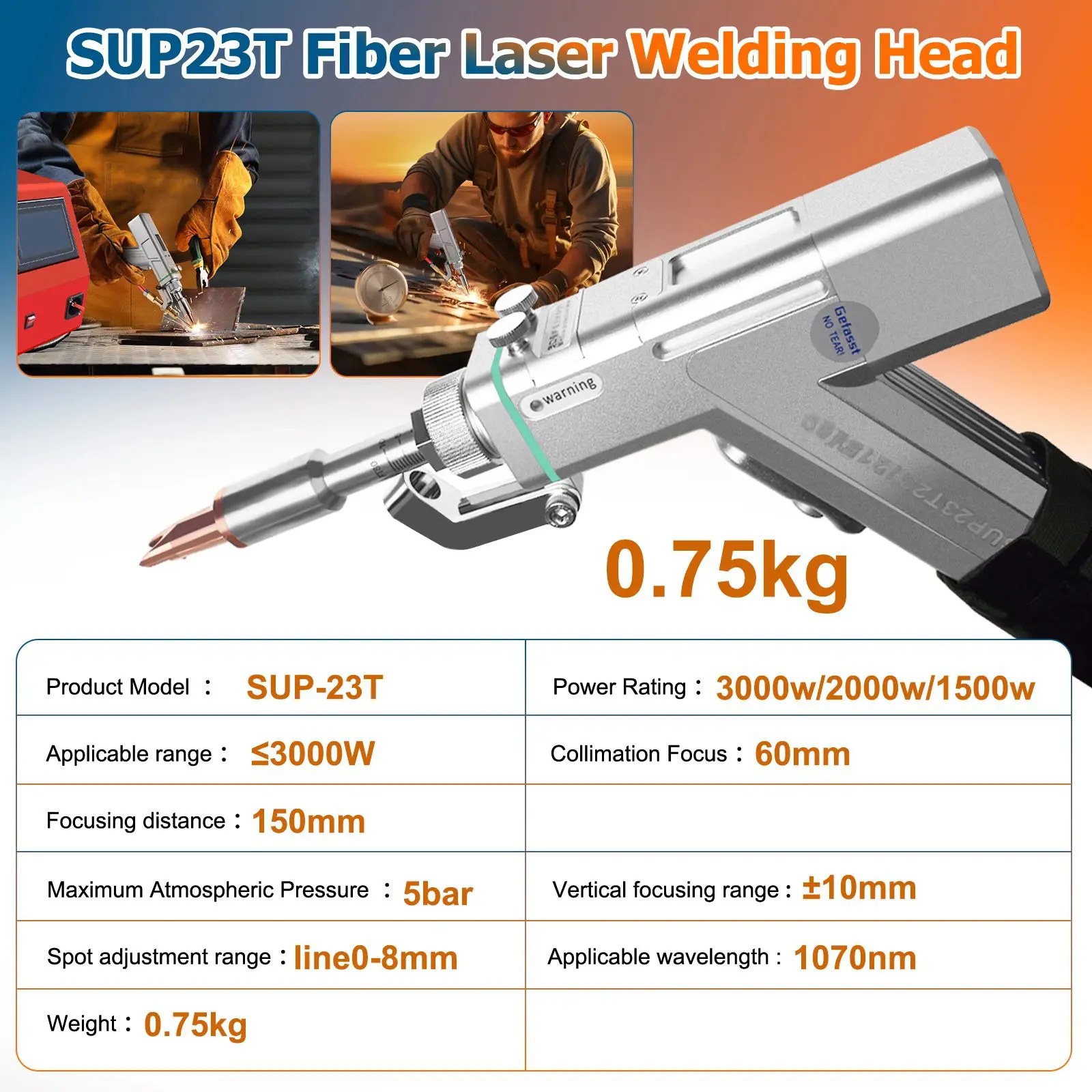

Controller & Laser Gun

Brand    SUP

Model    SUP22C

Supply Voltage, V    220+10%V AC 50 / 60 Hz

Placement Environment    Flat, No Vibration, and Impact

Working Temperature, C    10 – 40

Applicable Wavelength    1064nm (+10nm)

Applicable Power    < 3000W

Collimating Lens    D16*5 / F60

Focusing Lens    D20*3.5 (F400 / F600 / F800)

Reflective Mirrors    20*15.2*T1.6

Protective Windows Specifications    D30*T5

Maximum Support Pressure    15 Bar

Video Gallery

Additional information

Laser power

1500W, 3000W
