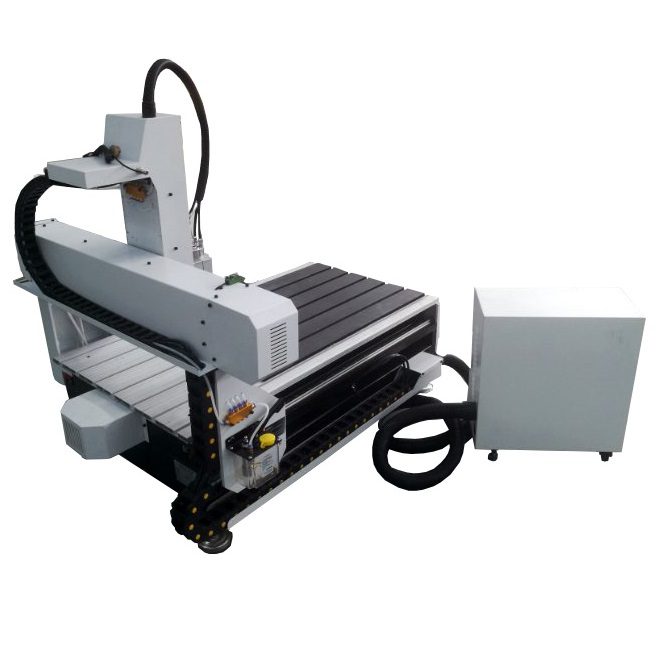

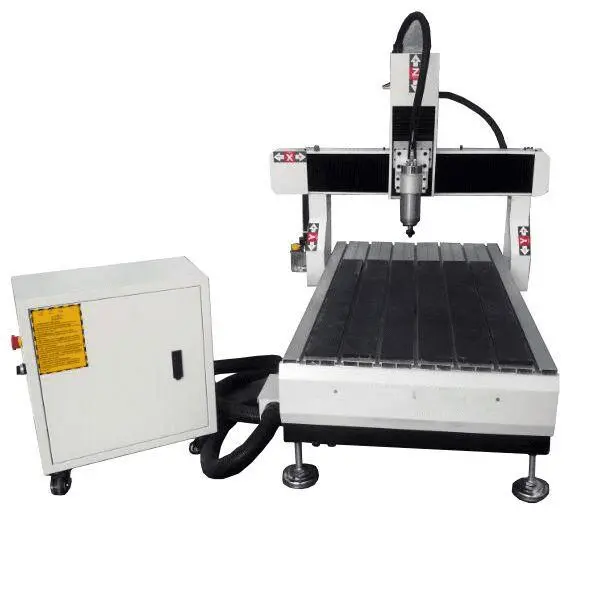

High-Precision CNC Router Machine with 2.2kW Spindle Motor
Overview
This advanced CNC router machine is designed for precision, power, and versatility, making it an ideal choice for professionals and hobbyists alike. Equipped with a robust 2.2kW spindle motor (upgradeable to 3.2kW) and a variable-frequency inverter drive, this machine ensures smooth operation with controlled acceleration and deceleration, minimizing current surges and power supply issues. Compatible with industry-leading software such as Artcam, Aspire, Fusion 360, and MasterCam, this CNC router delivers exceptional performance for a wide range of applications.
Key Features
- High-Precision Ball Screw: Ensures accurate and smooth movement across all axes.
- T-Slot Aluminum Table: Provides a durable and versatile work surface for securing materials.
- Brushless Spindle Motor: 3hp (2.2kW) water/air-cooled spindle with an ER20 collet for high-speed and precise cutting.
- Variable-Frequency Inverter Drive: Offers controlled acceleration and deceleration for optimal performance.
- Taiwan TBI High-Precision Ball Screws: Used for X, Y, and Z-axis transmission, ensuring reliability and accuracy.
- Taiwan Linear Guides: Enhance stability and precision during operation.
- Manual Lubrication System: Ensures smooth operation and longevity of moving parts.
- Manual Tool Sensor: Simplifies tool calibration for accurate machining.
- Water Misting Spray System: Included for efficient cooling and dust control during operation.
Technical Specifications
| Parameter | Details |
|---|---|
| X, Y Axis Travel | 3’ x 2’ (600mm x 900mm) |
| Z Axis Travel | 5” (130mm) |
| Spindle Motor Power | 2.2kW (upgradeable to 3.2kW), water/air-cooled, ER20 collet |
| Travelling Speed | 25m/min |
| Working Speed | 0-20m/min |
| Re-positioning Accuracy | ±0.03mm |
| System Resolution | ±0.003mm |
| Working Accuracy | ±0.07mm |
| Work Table | Aluminum T-slot |
| Machine Structure | Special desktop-type design |
| Transmission | X, Y, Z axis Taiwan TBI high-precision ball screw |
| Linear Guide | Taiwan Linear Guide |

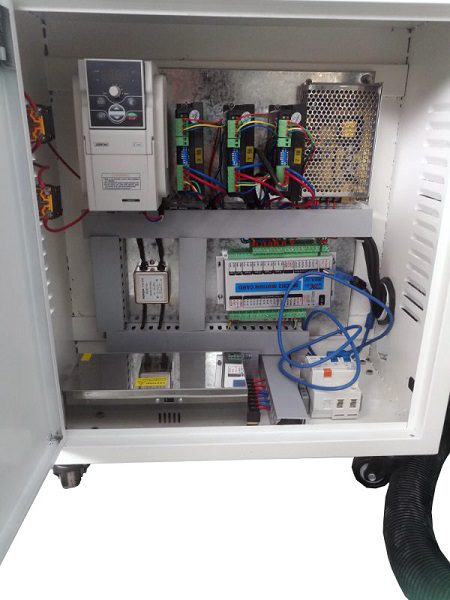

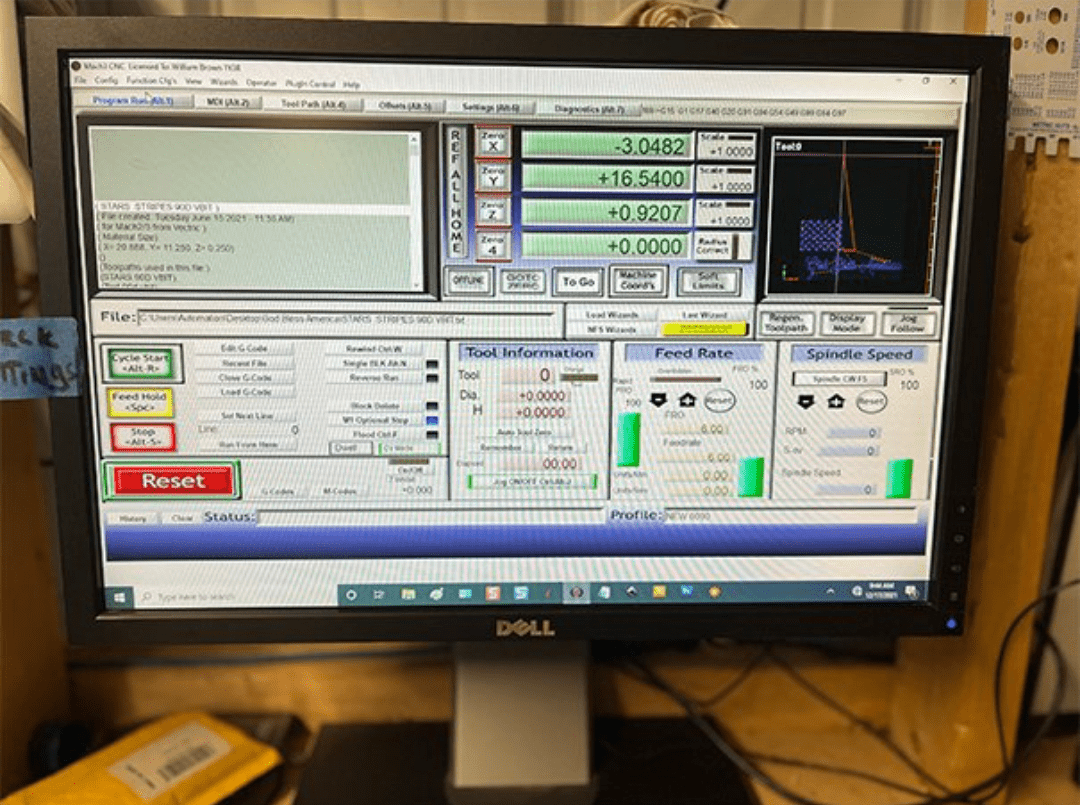

| Control System | Mach3 (Optional: DSP handle controller) |
| Command Language | G-code |
| Drive Motors | Stepper 450B with Leadshine M542 drivers |
| Inverter Type | 2.2kW Fuling inverter |
| Lubrication System | Manual lubrication |
| Tool Calibration | Manual tool sensor |
| Compatible Software | Artcam, Aspire, Fusion 360, MasterCam, etc. |
| Voltage | 220V, 1PH 50Hz/60Hz |
Why Choose This CNC Router?
- Precision Engineering: With a re-positioning accuracy of ±0.03mm and a system resolution of ±0.003mm, this machine delivers unmatched precision for intricate designs and detailed work.
- Powerful Performance: The 2.2kW spindle motor (upgradeable to 3.2kW) ensures high-speed cutting and efficient material removal.
- Durable Construction: Built with high-quality components such as Taiwan TBI ball screws and linear guides, this machine is designed for long-lasting performance.
- User-Friendly Design: The manual lubrication system, tool calibration sensor, and compatibility with popular software make this machine easy to operate and maintain.

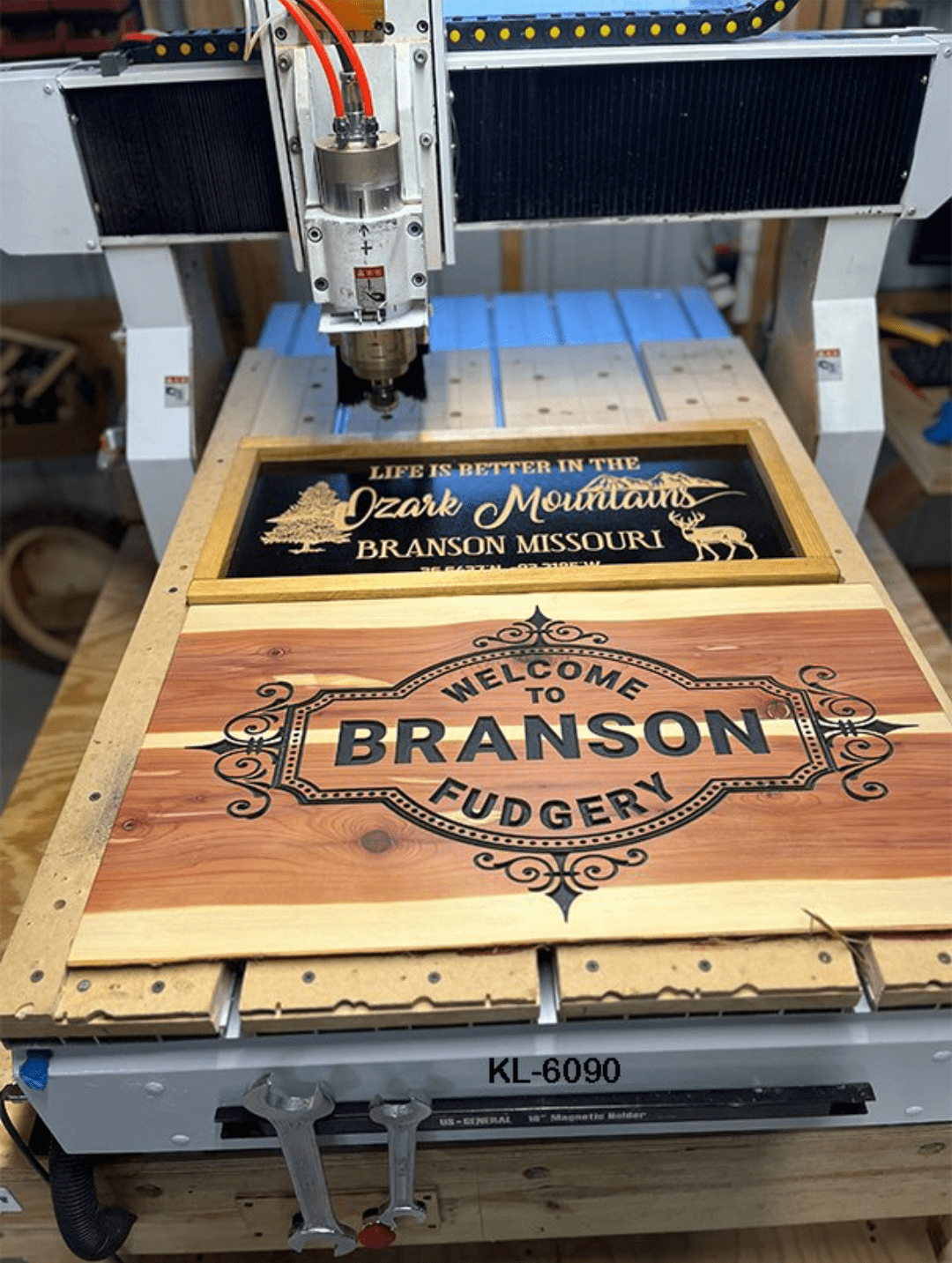

- Versatile Applications: Ideal for woodworking, engraving, prototyping, and more, this CNC router is a versatile addition to any workshop.
Package Includes
- CNC Router Machine
- Water misting spray system
- Manual lubrication system
- Manual tool sensor
- Fuling 2.2kW inverter
Compatible Software
This CNC router is compatible with a wide range of software, including:
- Artcam
- Aspire
- Fusion 360
- MasterCam
